smartIAQ Intelligent Clean Air System designed to clean air on demand and deliver ROI through ventilation efficiency.

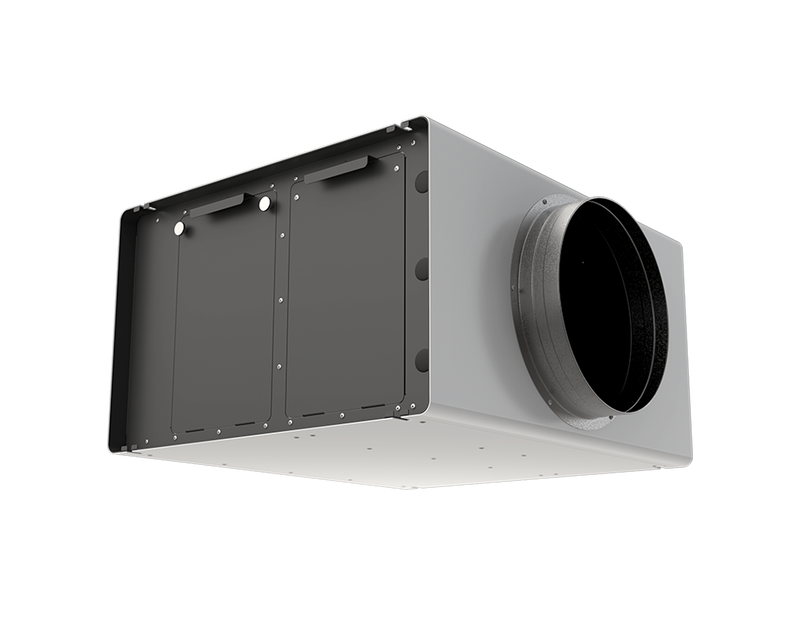

smartIAQ® Centralized

Standards Based On-Demand Air Cleaning with Real ROI

smartIAQ® delivers on-demand air cleaning with integrated sensors, recognizing air quality patterns based on ASHRAE standards.

Talk to Sales

smartIAQ Centralized Ventilation Efficiency

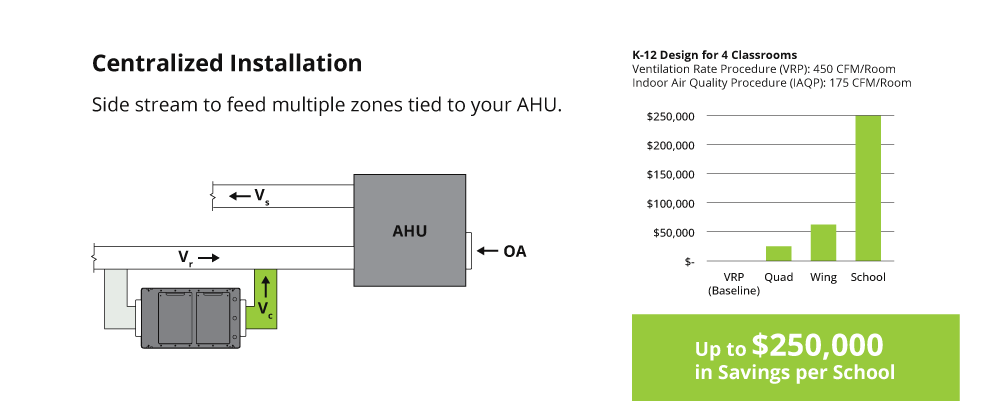

The smartIAQ Centralized model installs as a side-stream to your AHU, enabling system-wide ventilation efficiency that reduces required outdoor air ventilation and downsizes HVAC equipment.

Side-stream integration for AHUs and RTUs
Reduces outdoor air requirements and overall system tonnage
UL 867 and UL 2998 tested & certified; ASHRAE 52.2 & 145.2 compliant
Air quality logging and filter life indicators
BACnet/Modbus support for remote monitoring

Specifications & Resources

Resources

Data Sheet

Centralized smartIAQ Series Data Sheet

CAD Files

STEP File (3D General Purpose File)

SAT File (ACIS compatible)

RVT File (Architectural Revit File)

IAQP Calculator

Request smartIAQ Indoor Air Quality Procedure Calculator

Misc. Information

How smartIAQ Achieves IAQP Compliance White Paper

Measuring Matters: How Closed Loop Monitoring Enhances the Indoor Air Quality Procedure

How the IAQP Works in ASHRAE 62.1

IAQP & Standard 90.1

IAQP & Standard 241

Performance

Airflow Capacity: Up to 700 CFM

Coverage (Standard Classroom Occupancy): 2,000 ft² (70 occupants or a max of 2 rooms)

Sound Level (Max Cleaning): NC-35

Filter Life: 6 months

Dimensions

Unit Dimensions: 23"L × 26"W × 14"H

Weight (Standard Unit): 70 lbs

Weight (w/ Optional Transformer): 78 lbs

Electrical Specifications

Input Voltage (Standard): 120 VAC

Input Voltage (Optional): 208/230/277/347 VAC

Power Consumption: 200 W (Max)

Frequency: 50/60HZ

Compliance & Certifications

Compliance & Certifications: UL 867, UL 2998

Environmental Specifications

Temperature Range: 0° F to 140° F

Humidity Range: 5–85% RH (non-condensing)
