smartIAQ Intelligent Clean Air System designed to clean air on demand and deliver ROI through ventilation efficiency.
smartIAQ Logo_Dark_2 Color-1

smartIAQ® Performance

Standards Based On-Demand Air Cleaning with Real ROI

smartIAQ delivers on-demand air cleaning with integrated sensors, recognizing air quality patterns based on ASHRAE standards.

smartIAQ Performance Model

The smartIAQ Performance model is engineered for high-demand environments, providing constant IAQ protection, dual molecular filtration, and verified pathogen reduction. Perfect for laboratories, dental offices, and other facilities that need to manage high levels of contaminants.

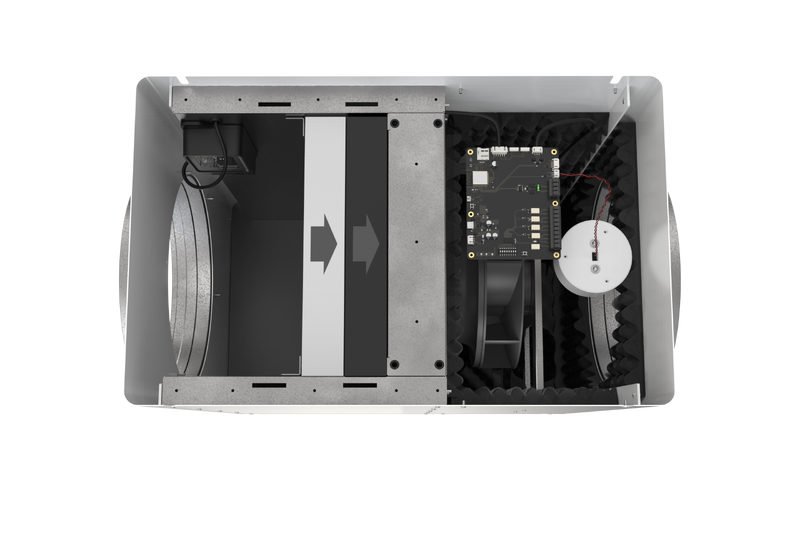

smartIAQ cross section showing intelligent air quality sensor and controller, filters, EC fan, and NPBI unit.



  • ASHRAE 52.2 & 145.2 tested for single-pass removal of particles and gases
  • Flexible Filtration Options: Standard MERV-14, dual carbon, or optional high efficiency (99.7% removal) with 250–500 CFM capacity
  • Intelligent sensor control with programmable response to multiple or targeted contaminants
    ASHRAE 241 equivalent clean air delivery up to 500 CFM
  • UL 867 and UL 2998 tested & certified for zero ozone emissions
    ECM blower with quiet, efficient operation for occupied spaces
  • Built-in verification: one-year air quality log, filter life alerts, optional Modbus/BACnet integration

Specifications & Resources

Performance

Airflow Capacity: Up to 500 CFM

Coverage (Standard Classroom Occupancy): 2,000 ft2 (70 occupants or a max of 2 rooms)

Sound Level (Sensing Mode): NC-25

Sound Level (Max Cleaning): NC-35

Filter Life: 6 months

Dimensions

Unit Dimensions: 23"L × 26"W × 14"H

Weight (Standard Unit): 70 lbs

Weight (w/ Optional Transformer): 78 lbs

Electrical Specifications

Input Voltage (Standard): 120 VAC

Input Voltage (Optional): 208/230/277/347 VAC

Power Consumption: 200 W (Max)

Frequency: 50/60HZ

Compliance & Certifications

Compliance & Certifications: UL 867, UL 2998

Environmental Specifications

Temperature Range: 0° F to 140° F

Humidity Range: 5–85% RH (non-condensing)
