smartIAQ Intelligent Clean Air System designed to clean air on demand and deliver ROI through ventilation efficiency.
smartIAQ Logo_Dark_2 Color-1

smartIAQ® Distributed

Standards Based On-Demand Air Cleaning with Real ROI

smartIAQ® delivers on-demand air cleaning with integrated sensors, recognizing air quality patterns based on ASHRAE standards.

Talk to Sales

smartIAQ Distributed Ventilation Efficiency

The smartIAQ Distributed model delivers in-room or multi-zone air cleaning without relying on central HVAC. Ideal for schools and offices, it provides verifiable IAQP compliance, reduces required outdoor air, and lowers HVAC costs.

  • Supports 1–4 zones at 125–500 CFM each
  • Solid-state sensors for CO₂, VOCs, formaldehyde, and particulates
  • ECM blower with quiet operation (NC-26 max)
  • Standard-size filters with 1-year filter life
  • Air quality log, alerts, and Modbus/BACnet connectivity

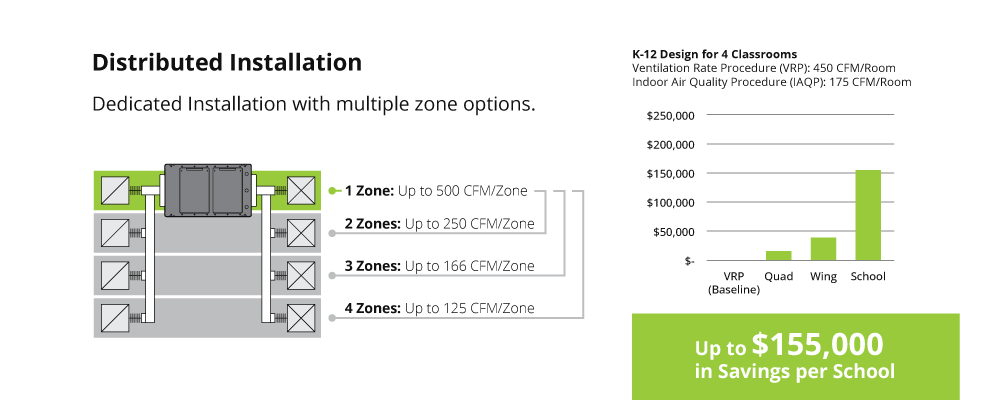

smartIAQ Distributed Installation gives you options for cleaning air in up to four zones and save $155,000 per school.

Specifications & Resources

Resources

Data Sheet

Distributed smartIAQ Series Data Sheet



CAD Files

STEP File (3D General Purpose File)

SAT File (ACIS compatible)

RVT File (Architectural Revit File)



IAQP Calculator

Request smartIAQ Indoor Air Quality Procedure Calculator



Misc. Information

How smartIAQ Achieves IAQP Compliance White Paper

Measuring Matters: How Closed Loop Monitoring Enhances the Indoor Air Quality Procedure

How the IAQP Works in ASHRAE 62.1

IAQP & Standard 90.1

IAQP & Standard 241

Performance

Airflow Capacity: Up to 500 CFM

Coverage (Standard Classroom Occupancy): 2,000 ft2 (70 occupants or a max of 2 rooms)

Sound Level (Sensing Mode): NC-25

Sound Level (Max Cleaning): NC-35

Filter Life: Over 1 year

Dimensions

Unit Dimensions: 23"L × 26"W × 14"H

Weight (Standard Unit): 70 lbs

Weight (w/ Optional Transformer): 78 lbs

Electrical Specifications

Input Voltage (Standard): 120 VAC

Input Voltage (Optional): 208/230/277/347 VAC

Power Consumption: 200 W (Max)

Frequency: 50/60HZ

Compliance & Certifications

Compliance & Certifications: UL 867, UL 2998

Environmental Specifications

Temperature Range: 0° F to 140° F

Humidity Range: 5–85% RH (non-condensing)
